711017Transfer Case Motor
Buy Now

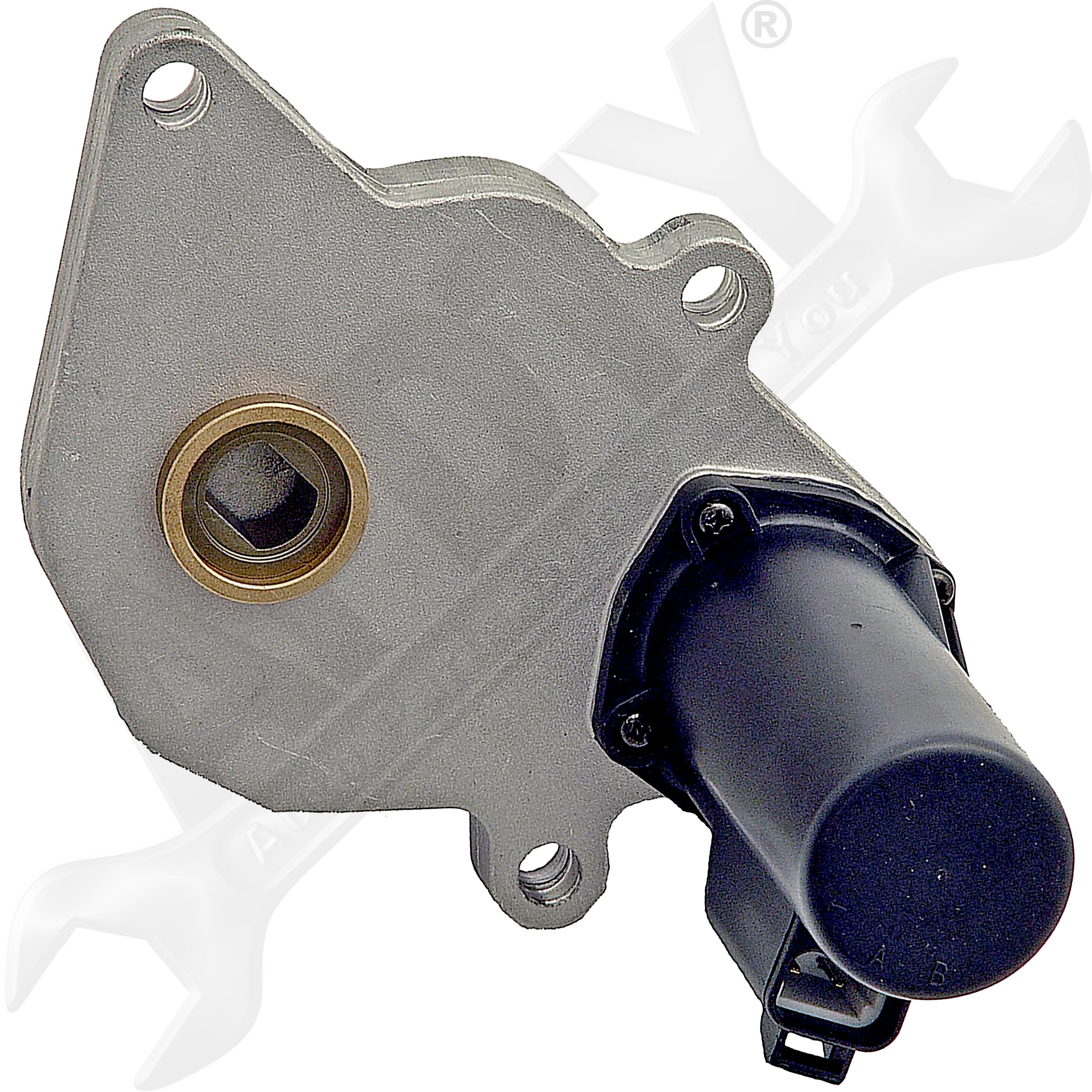

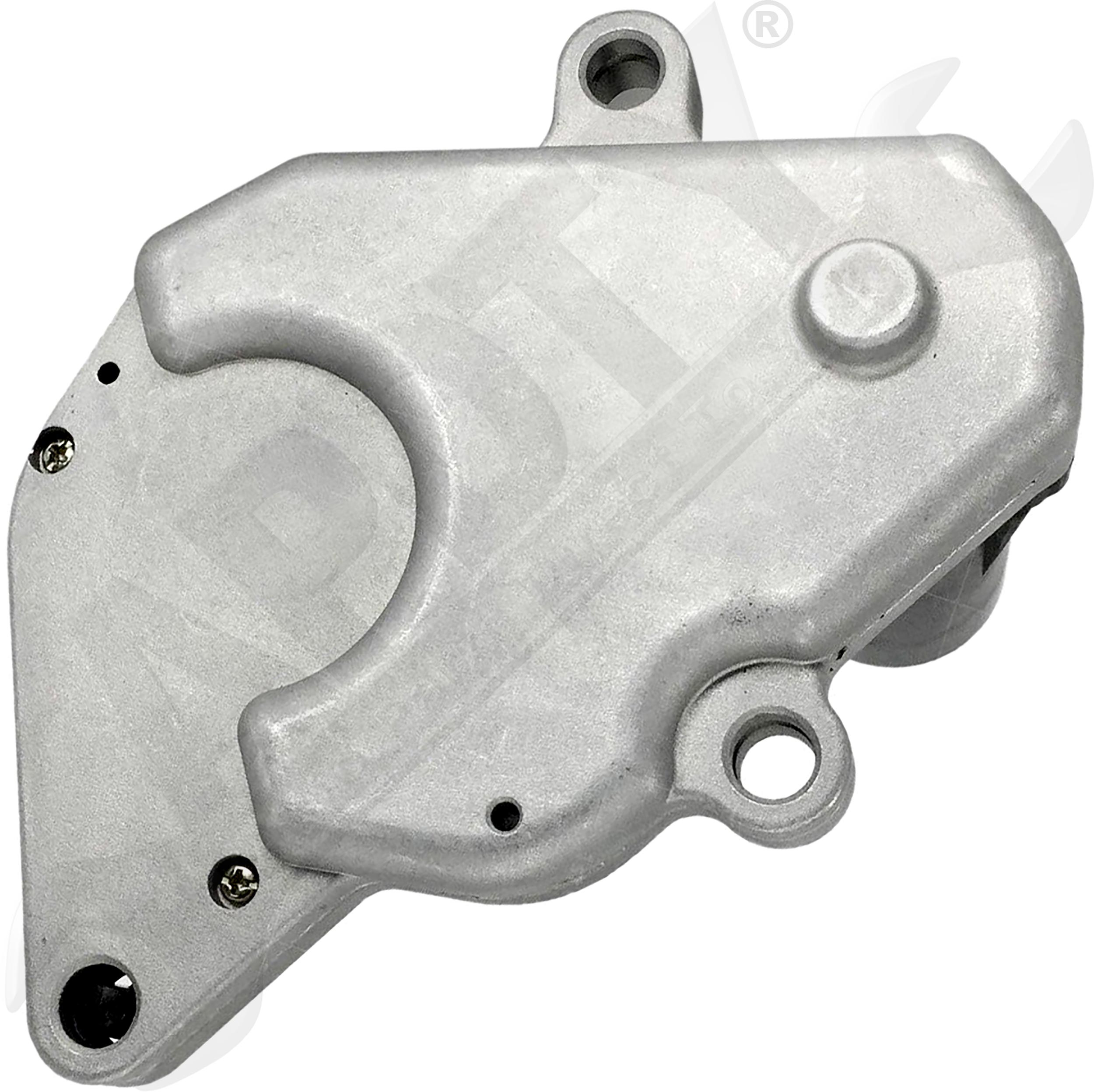

APDTY 711017 Transfer Case Shift Encoder Motor


  • Brand New Transfer Case Shift Encoder Motor
  • w/RPO Code NP4
  • Compatible With 1998-2001 Oldsmobile Bravada
  • Compatible With 1998-2001 GMC S15 Jimmy
  • Compatible With 1998-2001 GMC Sonoma
  • Compatible With 1998-2001 Chevrolet S10 Blazer
  • Compatible With 1998-2001 Chevrolet S10 Pickup
  • Compatible With 1999-2005 GMC Safari
  • Compatible With 1999-2005 Chevrolet Astro Van

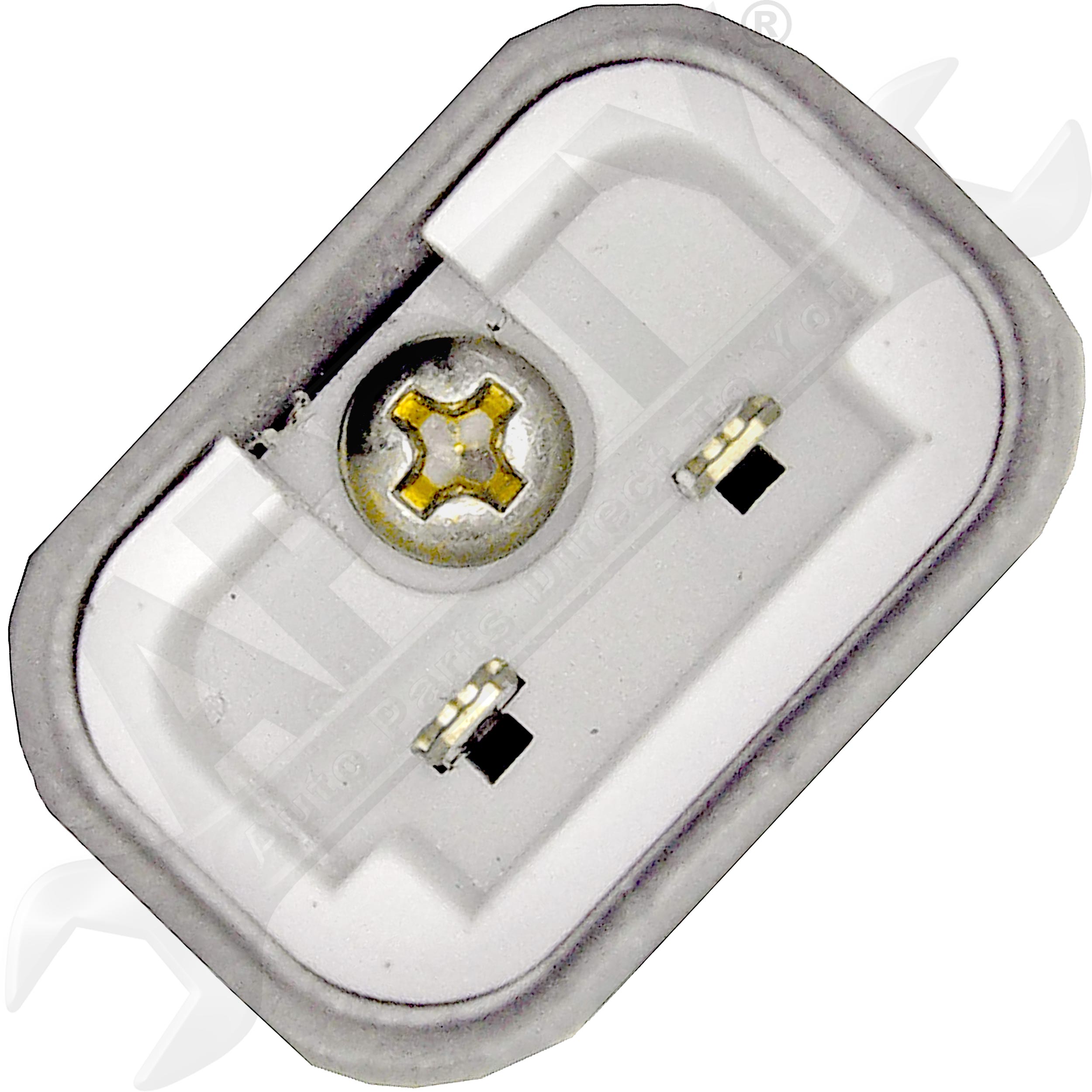

  • RPO (Regular Production Option) Code can be found on the inside of the glove box door. You can also determine if this part is correct by matching the image and or the connector. This motor replaces motors with a 2-pin rectangular connector.
  • Replaces GM Part #: 12474041, 12547470
  • The most common symptom of a failed transfer case motor is a Service 4WD light on the dash and it will be accompanied by one or more of these DTCs: CO308, CO310, CO374
  • See Buyers Guide for compatibility
Make Model Qualifiers Year
Chevrolet Astro
  • Position: N/A
  • All Configurations
 1999-2005
Chevrolet Blazer
  • Position: N/A
  • AWD
 1999-2001
Chevrolet S10
  • Position: N/A
  • 4WD
 1998-2001
GMC Jimmy
  • Position: N/A
  • AWD
 1999-2001
GMC Safari
  • Position: N/A
  • All Configurations
 1999-2005
GMC Sonoma
  • Position: N/A
  • 2.2L L4 2190cc 134ci
  • 4WD
 1998-2001
GMC Sonoma
  • Position: N/A
  • 4.3L V6 262ci
  • 4WD
 1998-2001
Oldsmobile Bravada
  • Position: N/A
  • All Configurations
 1998-2001
