711039Transfer Case Motor

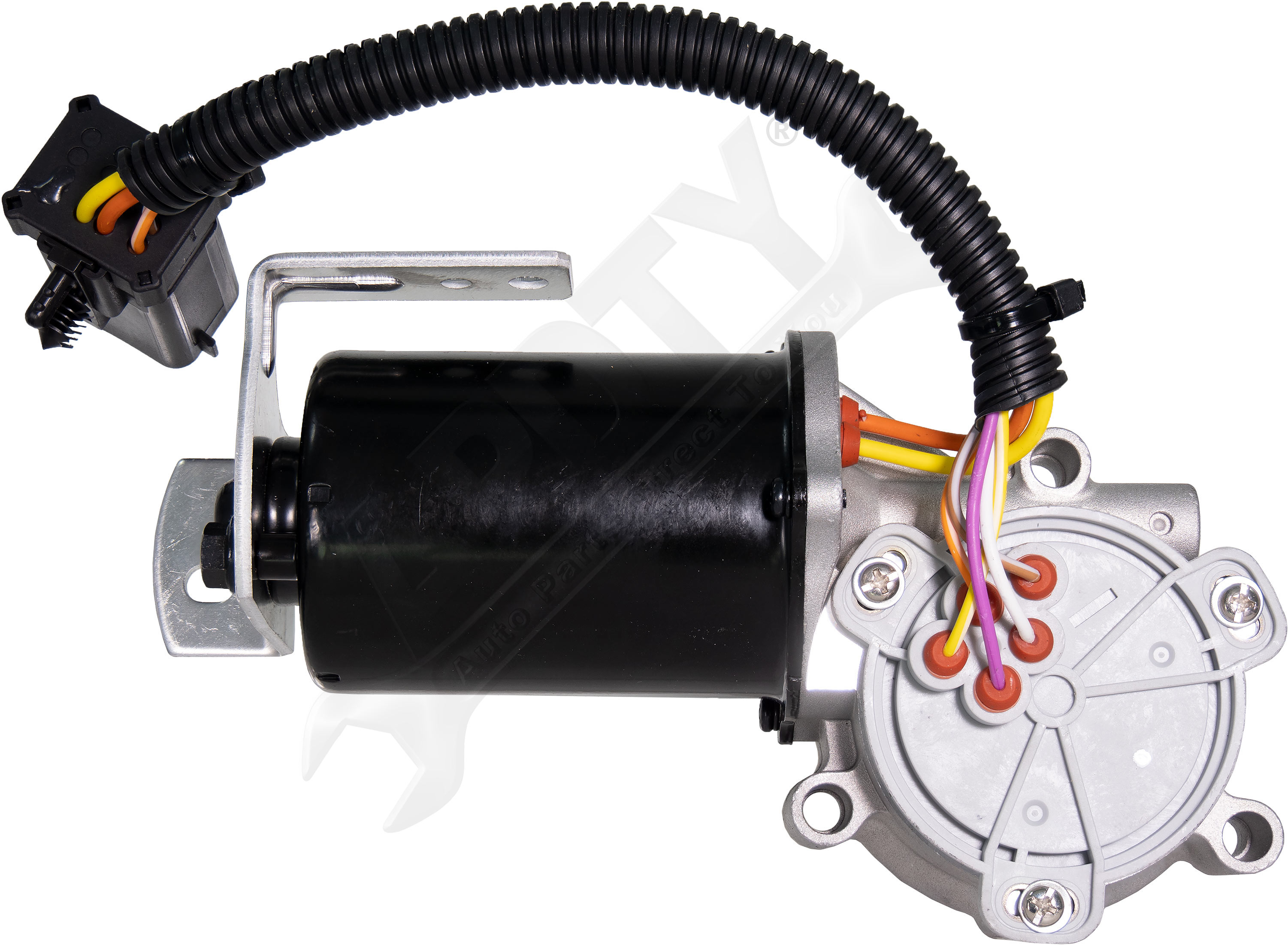

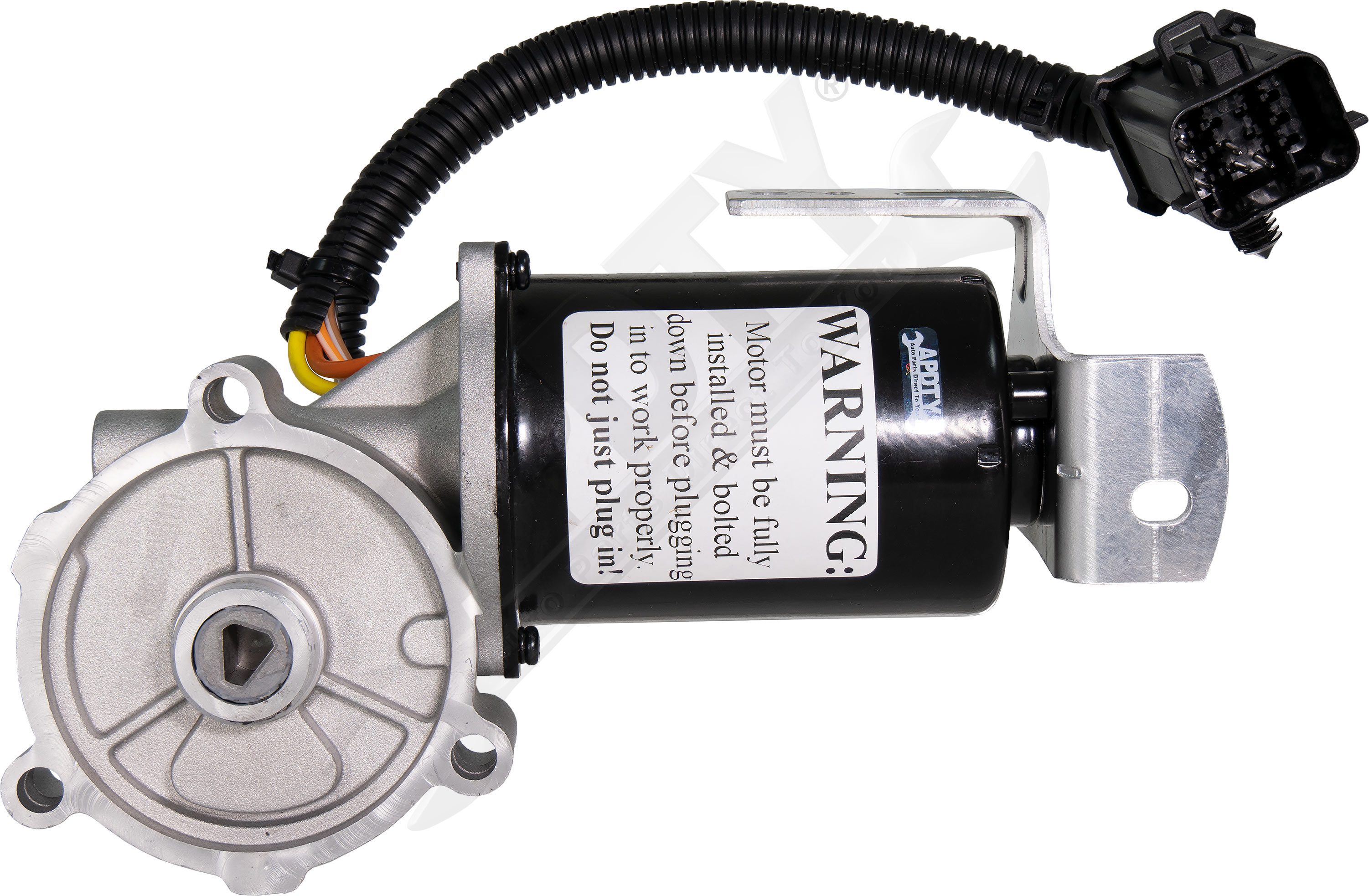

APDTY 711039 Transfer Case Shift Actuator Motor


  • Brand New Transfer Case Shift Motor

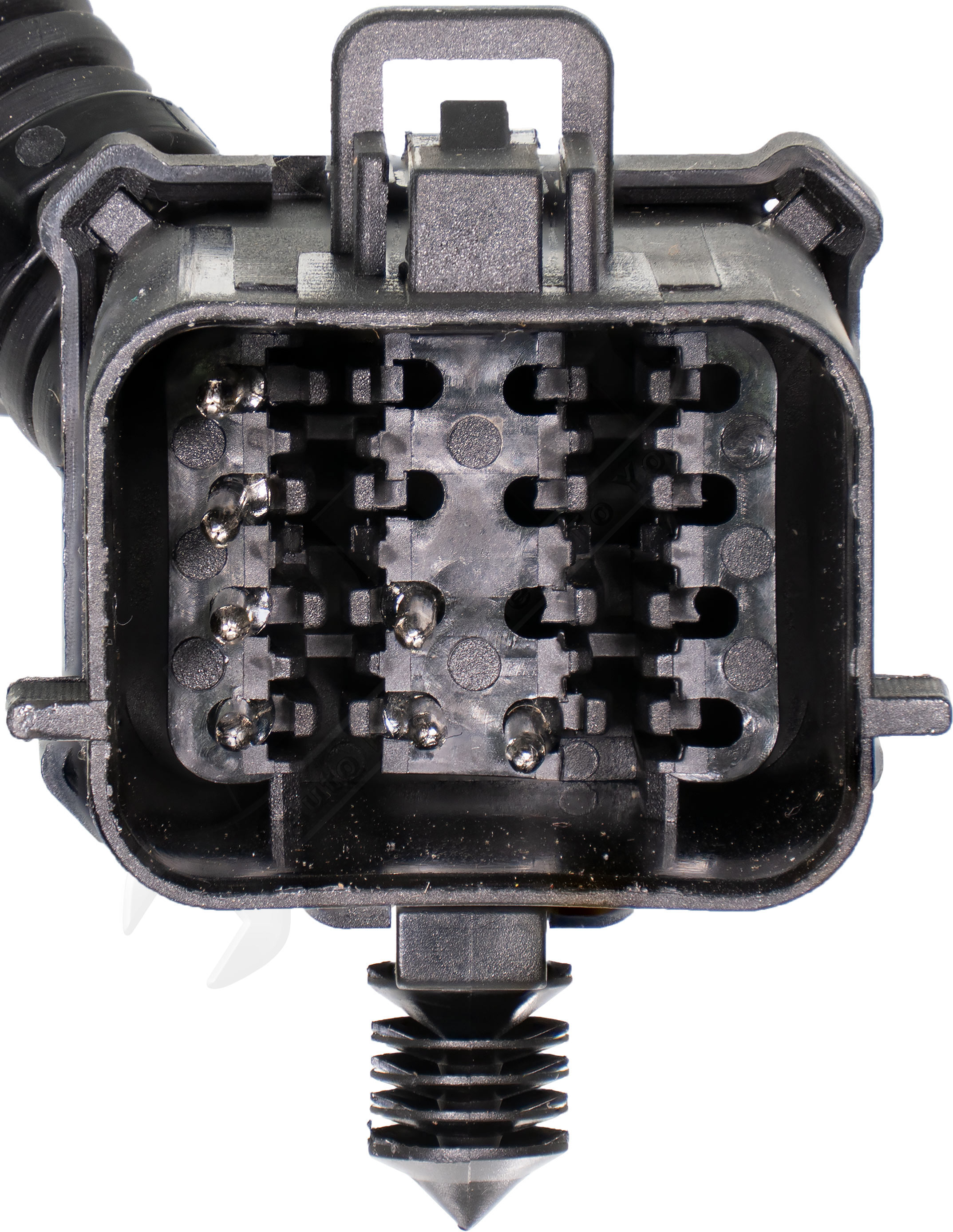

  • During installation, the shift motor should not be powered up before installing. If your truck failed in 4WD, simply turn the transfer case gear by hand or with a wrench to the 2WD position, then change the dash switch to 2-Wheel Drive. After you bolt up the motor, you can then plug in the connector. Most models will also require removing one wire from the old motor connector and installing it into the new motor connector. The electrical connectors open and close on both the old and new unit so this can be accomplished easily.
  • Compatible With 2008-2011 Ford Expedition
  • Compatible With 2009-2011 Ford F-150
  • Compatible With 2008-2010 Lincoln Navigator
  • Compatible With 2010-2011 Lincoln Mark LT
  • Replaces 8L1Z7G360AB, AL3Z7G360A, 8L1Z7G360AB, AL3Z7G360A
  • See Buyers Guide for compatibility
Make Model Qualifiers Year
Ford Expedition
  • Position: N/A
  • All Configurations
2008-2011
Ford F-150
  • Position: N/A
  • All Configurations
2009-2011
Lincoln Mark LT
  • Position: N/A
  • AWD
2010-2011
Lincoln Navigator
  • Position: N/A
  • All Configurations
2008-2010
